Articulated 4 ton Truck Mounted Crane Manipulator Manufacturer

FOB Reference Price:Get Latest Price
$5,000.00 - $8,000.00 / Unit | 1.0 Unit/Units (Min. Order)
Max. Lifting Load:
4000KG
Model Number:
SQ 4T
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 30 >30
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Feature:
Truck Crane
Applicable Industries:
Manufacturing Plant, Construction works
After Warranty Service:
Online support
Local Service Location:
Indonesia
Showroom Location:
Indonesia
Condition:
New
Application:
Construction
Rated Loading Capacity:
4000kg
Rated Lifting Moment:
8.4T.M
Max. Lifting Height:
11.5m
Span:
1989-3329mm
Place of Origin:
Henan, China
Brand Name:
LIYUE
Certification:
ISO9001
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Free spare parts
Hydraulic Cylinder Brand:
Bosch Rexroth
Hydraulic Pump Brand:
Kawasaki
Hydraulic Valve Brand:
KYB
Engine Brand:
CHANGCHAI
UNIQUE SELLING POINT:
High operating efficiency
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
3 months
Core Components:
Bearing, Pump
Product name:
Truck Mounted Crane
Hydraulic parts:
Telescopic Boom Mobile Crane Made
Crane type:
Truck Crane Mobile Crane Hydraulic Crane
Brand:
OEM Service
Origin:
100% China
Capacity:
4 Ton Truck Mounted Crane
Boom type:
Hydraulic Straight Arm
Chassis brand:
DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
Color:
Customer Requirements
Emission standard:
Euro 1/2/3/4/5
Supply Ability
Supply Ability:
2000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Special-purpose packaging for export .
Port
Qingdao Port/ Tianjin Port
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 30 >30
Est. Time(days) 15 To be negotiated
Product Specs

Articulated 4 ton Truck Mounted Crane Manipulator Manufacturer

SPECIFICATIONS FOR 4 TON CRANE TRUCK









Crane Dimension
Model
-
SQ 4T
Max. Lifting Capacity
kg
4000
Max. Lifting Height
m
11.5
Working Radius/ Span
m
2.1- 7.93
Rotation Angle
º
360
Boom Elevation
º
3-75
Boom Sections
Pcs
3
Outrigger Span (Fully Extended)
mm
1989-3329
Crane Weight
kg
1271
Hydraulic Tank Capacity
L
30
Max. Flow Rate of Hydraulic Oil System
L/min
25
Hydraulic System Rated Pressure
Mpa
20
Installation Space
mm
900

Working Parameter
The Basic Boom Length
m
3.3-11.5
Max. Lifting Torque
T.m
8.4
Max. Slewing Speed
r/ min
2

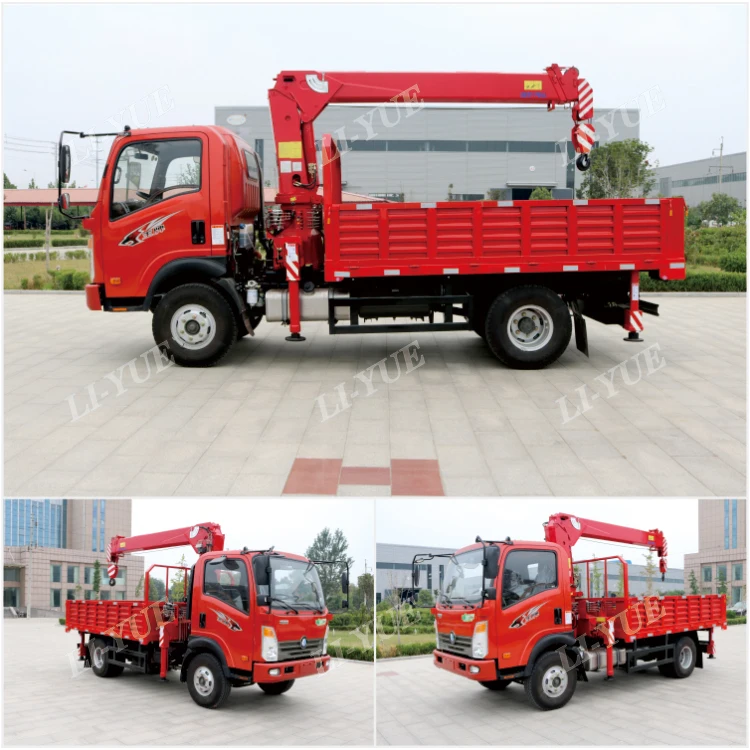

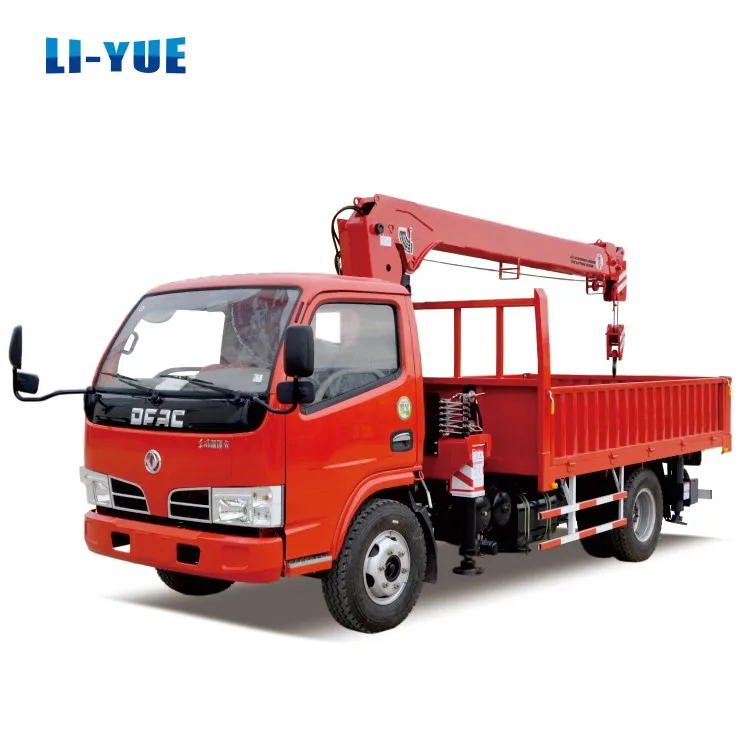

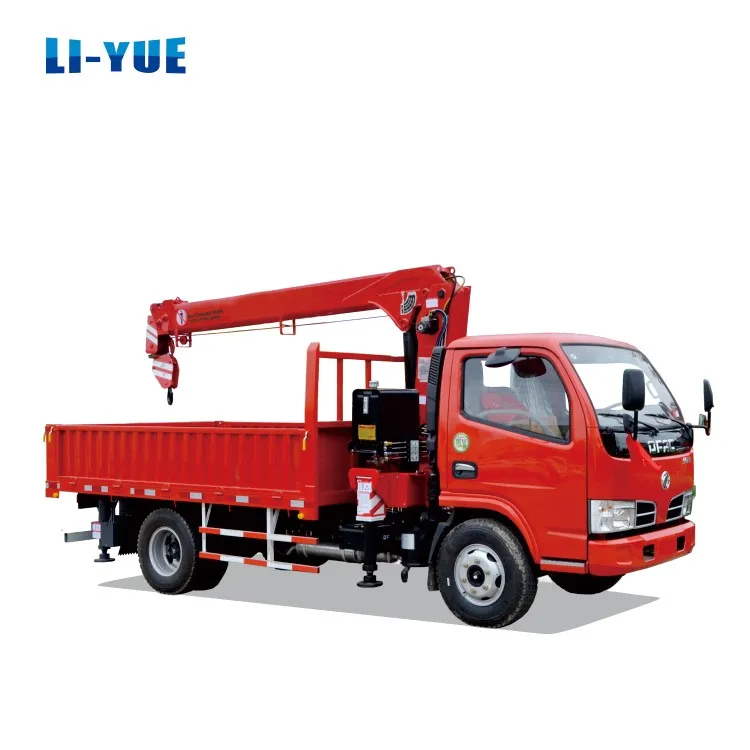

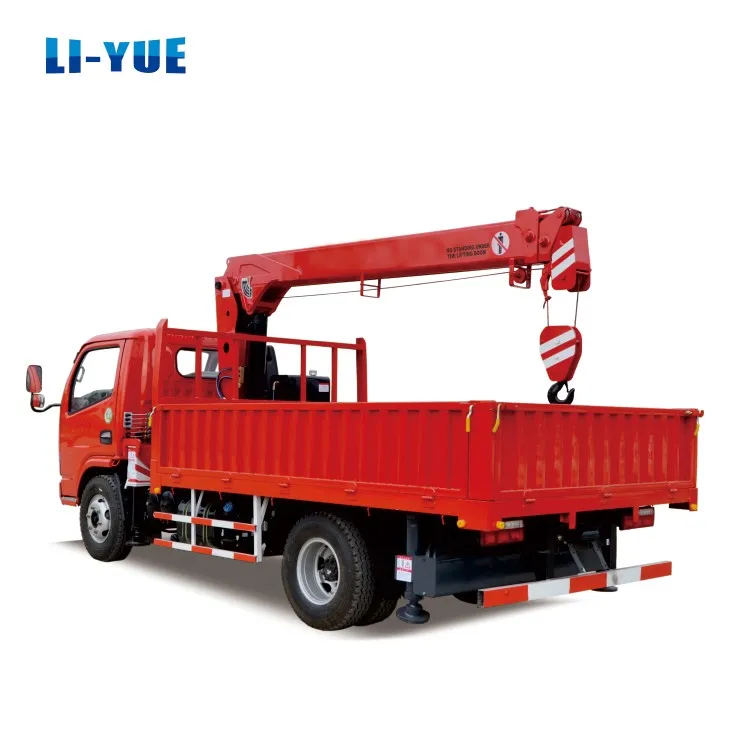

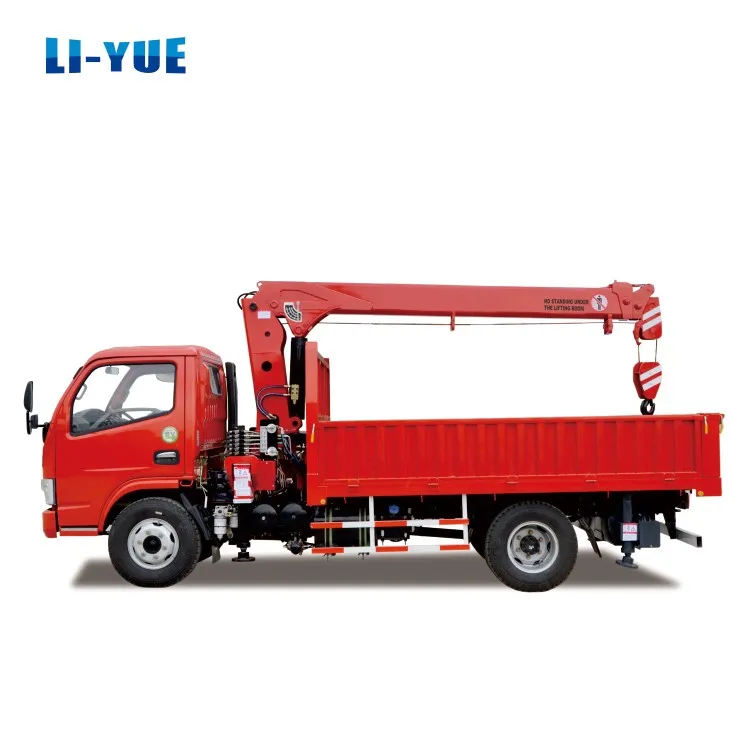

Product Show

Dongfeng Chassis and T- King Chassis are all available.

Please note, T- King chassis only has left hand steer and with engine Euro 5.

More Details

We use high quality sprare parts to ensure our product quality to meet your requirment.

Advanced Equipment

Our Advantage:

1- Large outrigger span, more stability of the operation.

2- Using six-edge type boom, the strength is greater.

3- Using European and American top hydraulic components, the crane is more reliable.

4- Oil circuit interface is chuck type, never loophole.

5- Using multi-leg control valves. Leg cylinders can be adjusted separately, more convenient and quick.

6- Using high-strength steel plate, the structure is more compact, the installation space is smaller.

7- Plate using laser cutting machine blanking, streamlined appearance has a good sense of beauty.

Packing & Delivery

---------------------------------------------Loading in Qingdao Port---------------------------------------------

The goods are packaged and reinforced by the professional team in port, to make sure the safety during the long journey.

Customer Visiting

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

FAQ

A: Are you the manufacturer?
Q: Yes, we are the manufacturer.

A: What kind of truck cranes do you produce?
Q: Truck crane and truck mounted crane from 2.5T to 25T.

A: What kind of truck chassis do you use?
Q: Dongfeng, T-King truck and so on.

A: What are your payment methods?
Q: T/ T, L/ C, West Union, Paypal, Money Gram, Alipay and so on.

A: What is the delivery time?
Q: Within 20 days after we receive the deposit.

A: What's the mode of transportation?
Q: Normally by 40 feet open top containers, flat rack container or bulk vessel.

A: How long is the warranty?
Q: 1 Years warranty service.

A: How long is the history of your factory?
Q: LIYUE has been in producing truck cranes since 1980.
